USA ASTM STANDARD METAL FRAME BUILDING INSULATION PINK GLASS WOOL BATTS AND PRE-CUT ROLL

AVAILABLE FORMS

Batts and Pre-Cut Roll

Product Description

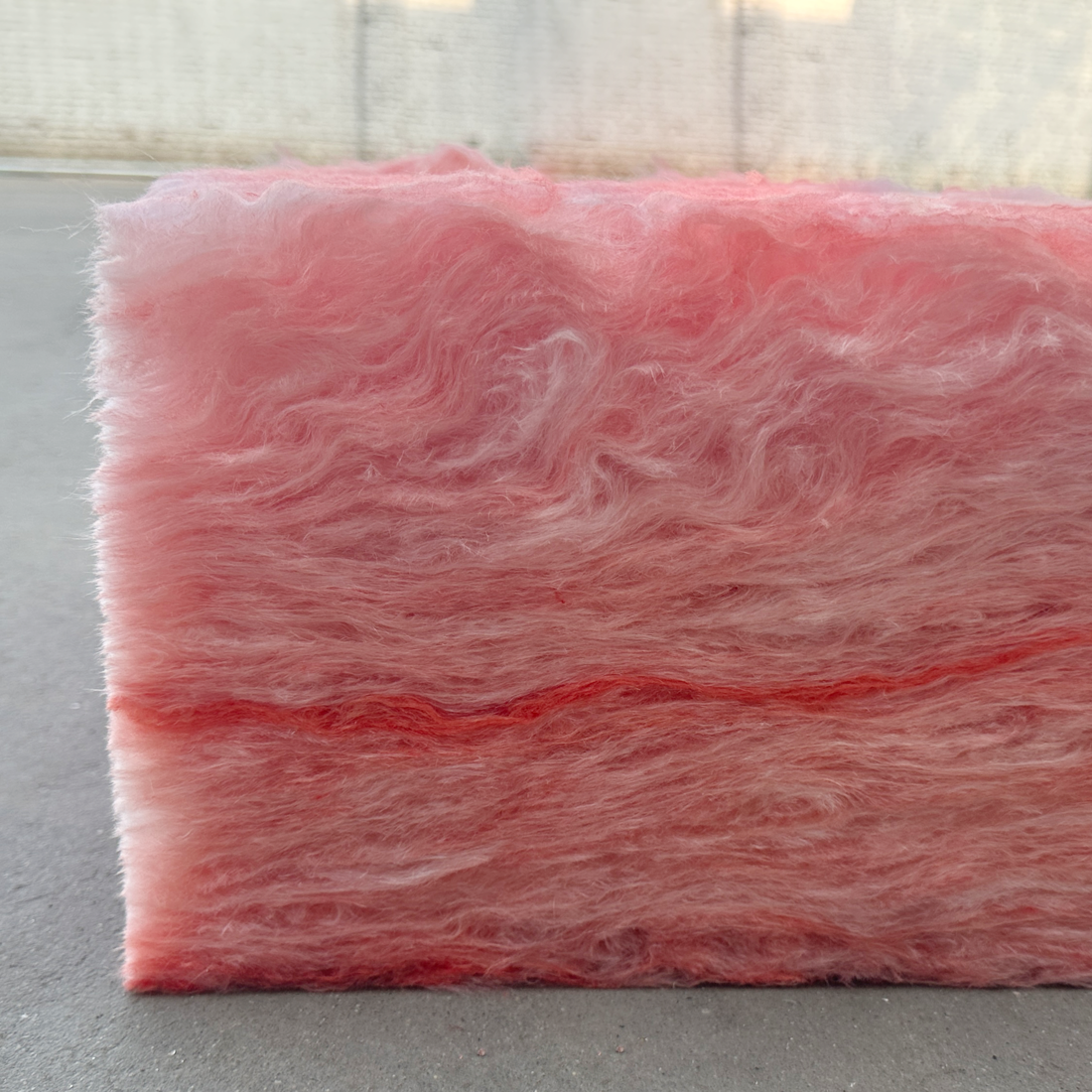

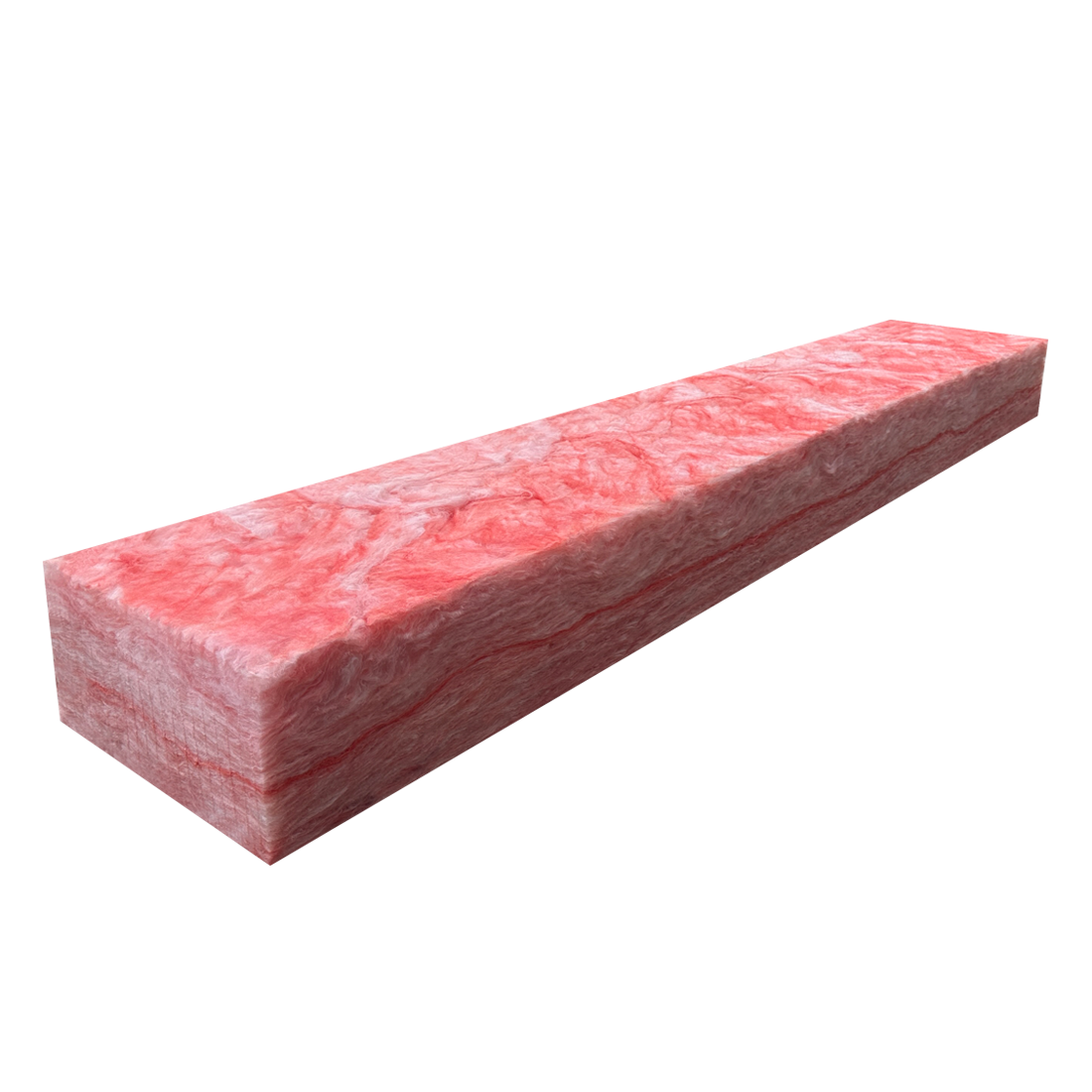

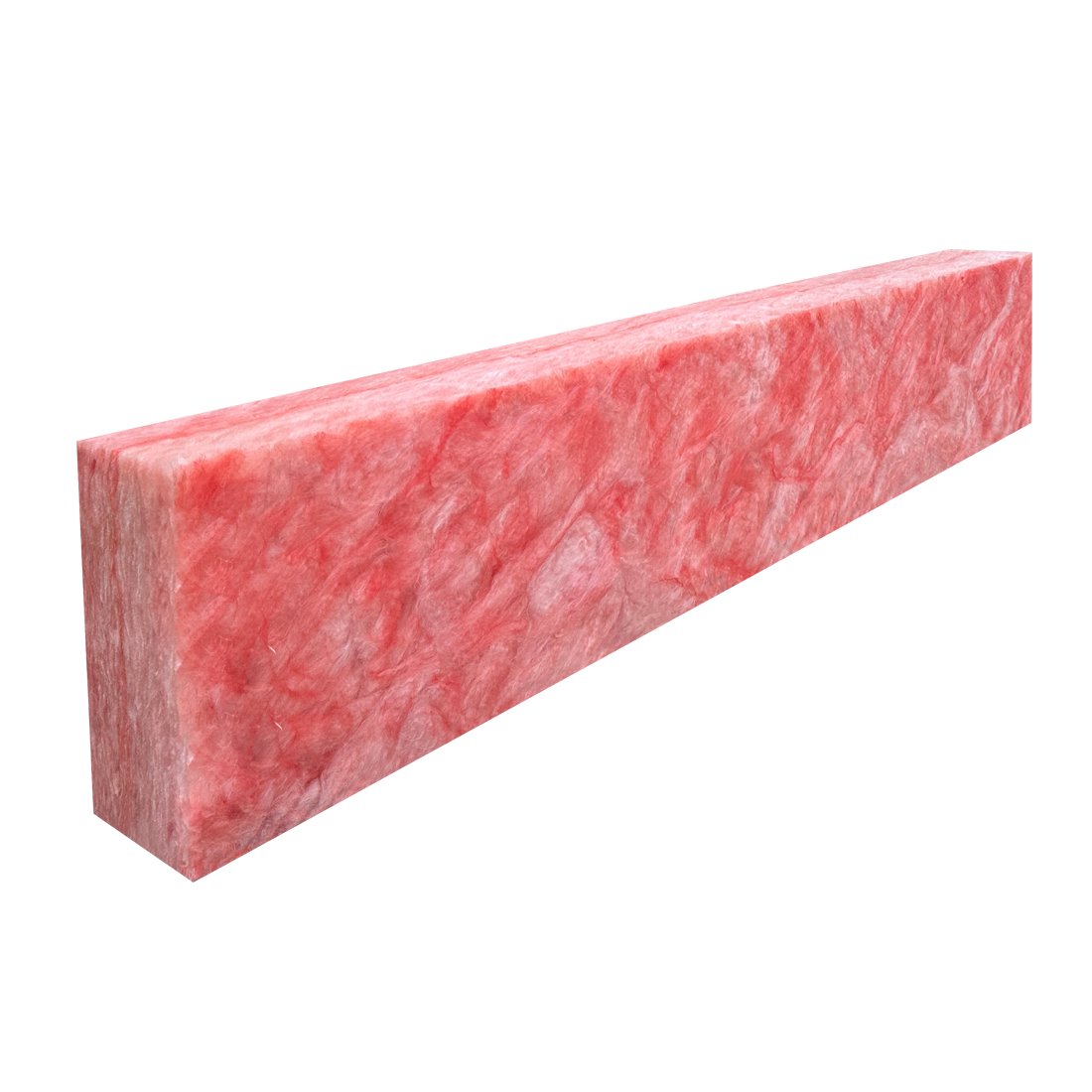

United Insulation glass wool batts and pre-cut rolls are consisted of long, resilient fibers bonded together with a thermosetting resin to form a lightweight, flexible glass wool batts or rolls. Both batts and rolls are pre-cut to fit snugly between wall studs, ceiling and floor joist. However, only rolls or blanket insulation provide continuous coverage because of their extended lengths. Both batts and rolls can be supplied with a factory applied foil vapor barrier (FSK, Vinyl, Foil, WMP, and Kraft Facing) accordingly to project designs or customer's requirement.

message

Application	R-value	Width		Lenth		Thickness	PKG/40'HQ
	(hr.ft2 F/Btu)	(inch/mm)		(ft/m)		(inch/mm)	(No#)
Metal Frame Building Insulation	R11	16"(406mm)	24"(609mm)	48"(1219mm)	96"(2438mm)	3.5"(90mm)	Loading Qty, Please consult
	R13	16"(406mm)	24"(609mm)	48"(1219mm)	96"(2438mm)	3.5"(90mm)
	R15	16"(406mm)	24"(609mm)	48"(1219mm)	96"(2438mm)	3.5"(90mm)
	R19	16"(406mm)	24"(609mm)	48"(1219mm)	96"(2438mm)	6.25"(160mm)
	R21	16"(406mm)	24"(609mm)	48"(1219mm)	96"(2438mm)	6"(150mm)
	R22	16"(406mm)	24"(609mm)	48"(1219mm)	96"(2438mm)	6.75"(170mm)
	R25	16"(406mm)	24"(609mm)	48"(1219mm)	96"(2438mm)	8"(200mm)
	HD30	16"(406mm)	24"(609mm)	48"(1219mm)	96"(2438mm)	8"(200mm)
	R30	16"(406mm)	24"(609mm)	48"(1219mm)	96"(2438mm)	9.5"(240mm)

Conductivity Value tested under temperature in 23°C

Consult your local sales representative for other available sizes and specification

Tested Content	Tested Method	Tested Value
Density	ASTM C612	12kgs/m³
Thickness	GB/T 17795-2008	100mm
Average diameter of fibers	GB/T 17795-2008	6.5μm
Coefficient of Heat Conductivity	EN12667	0.039W/m·K
Thermal Resistance	ASTM C653	2.50m²·K/W
Average NRC	EN ISO 354	0.95
Maximum Service Temperature	ASTM C411	170°C
Corrosion Resistance	ASTM C665	No Chemical Reaction
Mold Resistance	ASTM C665	Mildew proof
Moisture Absorption	ASTM C1104	Less 3% by weight
Humidity veneration Rate	ASTM E96	Max 0.013g/24Hours·m²
Non-Combustibility	ASTM E84	Max 0.013g/24Hours·m²
